CDVS SERIES

    ALUMINUM ELECTROLYTIC CAPACITORS


  • For high density surface mounting, 85℃,2000hours guaranteed.

  • Carrier taping supplied.

  • Reflow soldering is available
  • SPECIFICATIONS
Item Characteristics
Temperature Range(oC) -40~+85
Rated Voltage Range (V) 4~100
Nominal capacitance range (uF) 0.1~1500
Leakage Current (uA) I≤0.01CV or 3 whichever is greater (at 20oC, after 2 minutes)

C: Nominal Capacitance (uF), V: Rated Voltage (v)
Capacitance Tolerance(20oC,120Hz) ±20%
Dissipation Factor(20oC,120Hz)
Rated voltage (v) 4 6.3 10 16 25 35 50 63 100
D.F. 0.35 0.28 0.24 0.20 0.16 0.14 0.12 0.12 0.12
Temperature Stability(120Hz)
Rated voltage v) 4 6.3 10 16 25 35 50 63 100
Impedance ratio Z-25oC/Z+20oC <Φ8 7 4 3 2 2 2 2 2 2
≥Φ8 7 5 4 3 2 2 2 2 2
Z-40oC/Z+20oC <Φ8 15 8 8 4 4 3 3 3 3
≥Φ8 15 10 8 6 4 3 3 3 3
Load Life(+85oC)
Time 2000hours
Leakage current Not more than the specified value
Capacitance change within ±20% of the initial value(≤16V : within ±25% of the initial value)
Dissipation factor Not more than 200% of the specified value
Shelf Life(+85oC)

     After storage for 1000 hours at +85℃, Rated voltage to be applied for 30 minutes, the capacitors shall meet the requirement of load life above
Resistance to Soldering Heat

The capacitors shall be kept on the hot plate maintained at 250℃ for 30 seconds. After removing from the hot plate and restored at room temperature, they meet the following requirement.

Leakage current Not more than the specified value
Capacitance change within ±10% of the initial value
Dissipation factor Not more than the specified value

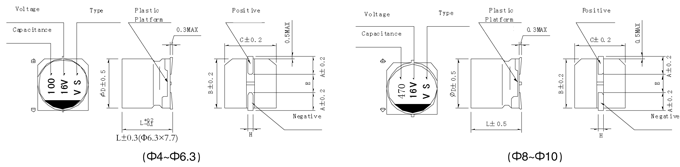

  • DIMENSIONS                                mm
  • MULTIPLIER FOR RIPPLE CURRENT




Lead spacing and diameter

  4x5.4 5x5.4 6.3x5.4 6.3x7.7 8x10.5 10x10.5
  A 1.8 2.1 2.4 2.4     2.9 3.2
B 4.3 5.3 6.6 6.6     8.3 10.3
C 4.3 5.3 6.6 6.6     8.3 10.3
E 1.0 1.3 2.2 2.2     3.1 4.5
L 5.4 5.4 5.4 7.7 10 10
H 0.5~0.8 0.8~1.1

  • STANDARD RATINGS



WV 4 6.3 10 16 25
Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple
Cap (uF)
DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA)
3.3 - -     - - - - - -

4.7

-

-

-

-

-

-

-

-

4X5.4

16

10

-

-

-

-

-

-

4X5.4

23

4X5.4

24

5X5.4

27

22

-

-

4X5.4

28

4X5.4

30

4X5.4

30

5X5.4

38

5X5.4

33

5X5.4

37

6.3x5.4

42

33

4X5.4

 28

4X5.4

34

4X5.4

34

5X5.4

44

5X5.4

46

5X5.4

37

5X5.4

41

6.3x5.4

49

6.3x5.4

52

47

4X5.4

 33

4X5.4

40

5X5.4

47

5X5.4

52

6.3x5.4

60

5X5.4

45

6.3x5.4

52

6.3x5.4

58

56

5X5.4

 42

5X5.4

46

5X5.4

50

5X5.4

57

6.3x7.7

65

6.3x5.4

52

6.3x5.4

57

6.3x5.4

63

100

5X5.4

 56

5X5.4

47

5X5.4

54

6.3x5.4

86

6.3x7.7

130

6.3x5.4

70

6.3x5.4

76

150

6.3x5.4

 79

6.3x5.4

71

6.3x7.7

76

6.3x7.7

135

8X10.5

192

220

6.3x5.4

 96

6.3x7.7

95

6.3x7.7

150

6.3x7.7

150

8X10.5

232

8X10.5

215

10X10.5

250

330

6.3x7.7

 152

6.3x7.7

150

8X10.5

240

8X10.5

270

8X10.5

284

10X10.5

305

470

6.3x7.7

 200

8X10.5

265

8X10.5

290

8X10.5

307

10X10.5

393

10X10.5

330

680

8X10.5

 284

8X10.5

318

10X10.5

374

10X10.5

396

-

-

1000

8X10.5

 344

8X10.5

372

10X10.5

454

-

-

-

-

10X10.5

400

1500

10X10.5

 347

10X10.5

489

-

-

-

-

-

-



WV 35 50 63 100
Size Ripple Size Ripple Size Ripple Size Ripple
Cap (uF)
DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA)

0.1

-

-

4X5.4

1.0

4X5.4

1.0

-

-

0.22

-

-

4X5.4

2.0

4X5.4

2.3

-

-

0.33

-

-

4X5.4

2.8

4X5.4

3.5

-

-

0.47

-

-

4X5.4

4.0

4X5.4

5.0

-

-

1

-

-

4X5.4

8.4

4X5.4

10

-

-

2.2

-

-

4X5.4

13

4X5.4

15

-

-

3.3

-

-

4X5.4

17

4X5.4

20

6.3x7.7

28

4.7

4X5.4

18

4X5.4

18

4X5.4

23

6.3x7.7

35

5X5.4

20

10

4X5.4

24

5X5.4

30

6.3x5.4

34

6.3x7.7

50

5X5.4

29

6.3x5.4

33

22

5X5.4

39

6.3x5.4

43

6.3x7.7

70

8X10.5

120

6.3x5.4

46

33

6.3x5.4

53

6.3x7.7

85

8X10.5

160

10X10.5

190

47

6.3x7.7

70

6.3x7.7

90

8X10.5

170

-

-

8X10.5

140

56

6.3x7.7

80

8X10.5

150

8X10.5

230

-

-

100

6.3x7.7

120

8X10.5

181

8X10.5

280

-

-

8X10.5

175

10X10.5

195

150

8X10.5

214

10X10.5

238

-

-

-

-

220

8X10.5

246

10X10.5

289

-

-

-

-

10X10.5

265

330

10X10.5

324

-

-

-

-

-

-



Ripple Current: 85℃, 120Hz

The specific capacitance and case size are available on request.
