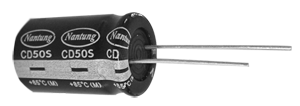

CD50S SERIES

   ALUMINUM ELECTROLYTIC CAPACITORS






  • Load life of 1000 hours at 85oC

  • 5mm height

  • VTR, digital cameras car radios, micro cassette tape recorder etc.
  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(oC) -40-+85
Rated Voltage Range (V) 4~50
Nominal capacitance range(uF) 0.1~470
Capacitance Tolerance(20oC, 120Hz) +/-20%
Leakage Current (uA)

I<=0.01CV or 3 whichever is greater. (at 20oC,after 2 minutes)
C: Nominal Capacitance (uF) V: Rated Voltage (V)

Dissipation Factor(20oC,120Hz)
Rated voltage (v) 4 6.3 10 16 25 35 50
D.F. D3-D6.3 0.35 0.24 0.20 0.16 0.14 0.12 0.10
D8 0.39 0.28 0.24 0.16 0.14 0.12 0.10
Temperature Stability(120Hz)
Rated voltage (v) 4 6.3 10 16 25 35 50
Impedance Ratio z-25oC/z+20oC 6 4 3 2
z-40oC/z+20oC 16 10 8 6 4
Load Life(+85oC)
Time 1000hours
Leakage current Not more than the specified value.
Capacitance change within+/-20% of initial value
Dissipation Not more than 200% of the specified value.
Shelf Life(+85oC)
Time 500hours
Leakage current Not more than the specified value.
Capacitance change within+/-20% of initial value
Dissipation Not more than 200% of the specified value.

 After test: Rated voltage to be applied for 30 minutes, 24 to 48 hours before measurement.


  • DIMENSIONS                                 mm
  • MULTIPLIER FOR RIPPLE CURRENT

D+/-0.5 3 4 5 6.3 8
F+/-0.5 1.0 1.5 2.0 2.5
d +/-0.1 0.4 0.45
a 0~+1.0

Frequency coefficient

Freq(Hz) 50,60 120 1K 10K-100K
Rated voltage(v)
4-16 0.80 1 1.1 1.2
25-35 0.80 1 1.5 1.7
50 0.80 1 1.6 1.9

Temperature coefficient

Temperature(oC) +70 +85
Coefficient 1.35 1
  • STANDARD RATINGS
Cap(uF) Wv(v) 4 6.3 10 16 25 35 50
Item Size(mm) Ripple Size(mm) Ripple Size(mm) Ripple Size(mm) Ripple Size(mm) Ripple Size(mm) Ripple Size(mm) Ripple
DxL (mA) DxL (mA) DxL (mA) DxL (mA) DxL (mA) DxL (mA) DxL (mA)
0.1 - - - - - - - - - - - - 3x5 3
4x5 3
0.22 - - - - - - - - - - - - 3x5 4
4x5 5
0.33 - - - - - - - - - - - - 3x5 5
4x5 6
0.47 - - - - - - - - - - - - 3x5 6
4x5 7
1 - - - - - - - - - - - - 3x5 8
4x5 10
2.2 - - - - - - - - - - 3x5 11 4x5 15
4x5 14
3.3 - - - - - - - - 3x5 13 4x5 17 4x5 18
4x5 15
4.7 - - - - - - 3x5 14 4x5 18 4x5 20 5x5 25
4x5 17
10 - - 3x5 17 4x5 22 4x5 25 5x5 30 5x5 30 6.3x5 40
4x5 20
22 3x5 21 4x5 30 5x5 35 5x5 40 6.3x5 50 6.3x5 55 8x5 75
4x5 25
33 4x5 30 5x5 40 5x5 45 6.3x5 60 6.3x5 65 8x5 80 8x5 90
47 4x5 35 5x5 50 6.3x5 65 6.3x5 70 8x5 95 8x5 100 - -
100 5x5 60 6.3x5 85 6.3x5 95 8x5 125 8x5 135 - - - -
220 6.3x5 105 8x5 145 8x5 155 - - - - - - - -
330 8x5 150 8x5 175 - - - - - - - - - -
470 8x5 180 - - - - - - - - - - - -

Ripple Current: 85 oC ,100Hz or 120Hz
