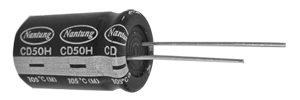

CD50H SERIES

ALUMINUM ELECTROLYTIC CAPACITORS



  • Load life of 1000 hours at 105oC

  • 5mm height, Wide temperature
  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(oC) -55-+105
Rated Voltage Range (V) 6.3~50
Nominal capacitance range (uF) 0.1~220
Leakage Current (uA) I<=.01CV or 3 whichever is greater (at 20oC,after 2 minutes)

C: Nominal Capacitance (uF), V: Rated Voltage (v)
Capacitance Tolerance(20oC, 120Hz) +/-20%
Dissipation Factor(20oC,120Hz)
Rated voltage (v) 6.3 10 16 25 35 50
D.F. 0.28 0.24 0.20 0.14 0.12 0.10
Temperature Stability (120Hz)
Rated voltage (v) 6.3 10 16 25 35 50
Impedance ratio z-25oC/z+20oC 3 2
z-40oC/z+20oC 8 5 4 3
Load Life(+105oC)
Time 1000hours
Leakage current Not more than the specified value
Capacitance change within+/-20% of initial value
Dissipation factor Not more than 200% of specified value
Shelf Life (+105oC)
Time 500hours
Leakage current Not more than the specified value
Capacitance change within+/-20% of initial value
Dissipation factor Not more than 200% of specified value

After test: Rated voltage to be applied for 60 minutes, 24 to 48 hours before measurement.


  • DIMENSIONS                                   MM
  • MULTIPLIER FOR RIPPLE CURRENT

Lead spacing and diameter

D+/-0.5 4 5 6.3
F+/-0.5 1.5 2.0 2.5
d+/-0.1 0.45
a 0~+1.0

Frequency coefficient

Freq (Hz) 50,60 120 1K 10K-100K
Rated voltage (v)
6.3~16 0.64 0.80 0.92 1.0
25~35 0.57 0.71 0.89 1.0
50 0.53 0.67 0.90 1.0

Temperature coefficient

Temperature(oC) +70 +85 +105
Coefficient 2.10 1.80 1
  • STANDARD RATINGS
Cap(uF) Wv(v) 6.3 10 16 25 35 50
Item Size(mm) Ripple Size(mm) Ripple Size(mm) Ripple Size(mm) Ripple Size(mm) Ripple Size(mm) Ripple
DxL (mA) DxL (mA) DxL (mA) DxL (mA) DxL (mA) DxL (mA)
0.1                     4x5 3
0.22                     4x5 5
0.33                     4x5 6
0.47                     4x5 8
1                     4x5 11
2.2                     4x5 17
3.3                 4x5 17 4x5 20
4.7         4x5 15 4x5 18 4x5 20 5x5 27
10     4x5 20 4x5 23 5x5 31 5x5 34 6.3x5 45
22 4x5 26 5x5 34 5x5 38 6.3x5 53 6.3x5 57
33 5x5 33 5x5 43 6.3x5 56 6.3x5 66
47 5x5 45 6.3x5 58 6.3x5 65
100 6.3x5 78
220 6.3x5 96

Ripple Current: 85oC ,100Hz or 120Hz
