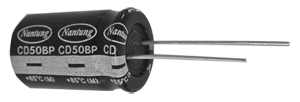

CD50BP SERIES

  ALUMINUM ELECTROLYTIC CAPACITORS






  • Load life of 1000 hours at 85oC

  • Bi-polar

  • 5mm height
  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(oC) -40-+85
Rated Voltage Range (V) 6.3~50
Nominal capacitance range (uF) 0.1~47
Leakage Current (uA) I<=0.03CV +3 (at20oC,after 5 minutes)

C: Nominal Capacitance (uF), V: Rated Voltage (v)
Capacitance Tolerance(20oC, 120Hz) +/-20%
Dissipation Factor(20,oC120Hz)
Rated voltage (v) 6.3 10 16 25 35 50
D.F. D=4 0.35 0.30 0.25 0.20 0.20 0.20
D=5,6.3 0.30 0.25 0.20 0.15 0.15 0.15
Load Life(+85oC)
Time 1000hours(with the polarity inverted every 250hrs)
Leakage current Not more than the specified value
Capacitance change within +/-20% of initial value
Dissipation  Factor Not more than 200% of specified value
Shelf Life (+85oC)
Time 500hours
Leakage current Not more than the specified value
Capacitance change within +/-20% of initial value
Dissipation  Factor Not more than 200% of specified value

 After test: Rated voltage to be applied for 60 minutes, 24 to 48 hours before measurement.


  • DIMENSIONS                              mm
  • MULTIPLIER FOR RIPPLE CURRENT

Lead spacing and diameter

D+/-0.5 4 5 6.3
F+/-0.5 1.5 2.0 2.5
d+/-0.1 0.45
a 0~+1.0


Frequency coefficient

Freq(Hz) 50,60 120 1K 10K~100K
Rated voltage(v)
6.3~16 0.80 1 1.1 1.2
25~35 0.80 1 1.5 1.7
50 0.80 1 1.6 1.9

Temperature coefficient

Temperature(oC) +70 +85
Coefficient 1.35 1
  • STANDARD RATINGS
Cap(uF) WV(V) 6.3 10 16 25 35 50
Item Size(mm) Ripple Size(mm) Ripple Size(mm) Ripple Size(mm) Ripple Size(mm) Ripple Size(mm) Ripple
DxL (mA) DxL (mA) DxL (mA) DxL (mA) DxL (mA) DxL (mA)
0.1                     4x5 2
0.22                     4x5 3
0.33                     4x5 4
0.47                     4x5 5
1                     4x5 7
2.2                 4x5 11 4x5 14
3.3             4x5 13 5x5 17 5x5 20
4.7         4x5 14 5x5 21 6.3x5 24 6.3x5 24
10     4x5 18 5x5 26 6.3x5 35 6.3x5 35 6.3x5
22 5x5 31 6.3x5 40 6.3x5 45
33 6.3x5 45 6.3x5 49
47 6.3x5 54 6.3x5 59

Ripple Current: 85 oC ,100Hz or 120Hz
