CD296 SERIES

 ALUMINUM ELECTROLYTIC CAPACITORS



  • Load life of 3000 hours at 105oC

  • Wide temperature, Long life,High ripple Current
  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(oC) -40~+105(250-450WV:-25~+105)
Rated Voltage Range (V) 16~450
Nominal capacitance range (uF) 47~47000
Capacitance Tolerance(20oC,120Hz) +/-20%
Leakage current (uA) I<=0.01CV or 1.5mA whichever is smaller (at20oC ,after 5 minutes)
C: Nominal Capacitance (uF) V: Rated Voltage (V)
Dissipation Factor(20oC,120Hz)
Rated voltage (v) 16 25 35 50 63~100 160~400 400~450
D.F. (MAX) 0.50 0.40 0.35 0.30 0.20 0.15 0.20
Temperature Stability(120Hz)
Rated voltage (v) 16~100 160-200 250-450
Impedance Ratio Z-25oC/Z+20oC 4 4 4
Z-40oC/Z+20oC 15 -
Load Life(+105oC)
Time 3000 hours
Leakage Current Not more than the specified value.
Capacitance Change Within +/-20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.
Shelf Life(+105oC)
Time 500 hours
Leakage Current Not more than the specified value.
Capacitance Change Within +/-20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.

After test: Rated voltage to be applied for 60 minutes, 24 to 48 hours before measurement


  • DIMENSIONS                    mm
  • MULTIPLIER FOR RIPPLE CURRENT


Frequency coefficient

Freq(Hz) 50 120 1K 10K 20K
Rated Voltage(V)
<=100 0.95 1 1.10 1.15 1.15
160~250 0.87 1 1.11 1.18 1.2
>=315 0.80 1 1.14 1.14 1.2

Temperature coefficient

Temperature(oC)  +40 +55 +70 +85 +105
Coefficient 2.7 2.5 2.1 1.7 1.0
  • STANDARD RATINGS
  WV(V)  16 25 35 50 63 80 100
Cap Ripple Cap Ripple Cap Ripple Cap Ripple Cap Ripple Cap Ripple Cap Ripple
DxL(mm)
uF (A) uF (A) uF (A) uF (A) uF (A) uF (A) uF (A)
22x25 6800 1.6 4700 1.55 3300 1.43 2200 1.31 1200 1.25 820 1.11 560 1.07
22x30 10000 1.99 6800 1.91 3900 1.65 2700 1.70 1800 1.52 1200 1.39 820 1.35
22x35 12000 2.28 8200 2.14 5600 2.02 3300 1.98 2200 1.73 1500 1.61 1000 1.54
22x40 15000 2.64 10000 2.40 6800 2.28 3900 2.25 2700 1.97 1800 1.83 1200 1.74
22x45 18000 2.98 12000 2.69     4700 2.56     2200 2.09 1500 1.99
22x50         8200 2.67 6800 2.89 3300 2.32
25x25 1000 1.99 6800 1.91 4700 1.78 2700 1.7 1800 1.52 1200 1.39 820 1.35
25x30 12000 2.3 8200 2.16 5600 2.04 3300 2.00 2200 1.75 1500 1.62 1000 1.56
25x35 15000 2.68 10000 2.44 6800 2.31 3900 2.28 2700 1.99 2200 2.01 1200 1.76
25x40 18000 3.04 12000 2.74 8200 2.60 5600 2.81 3300 2.27 - 1500 2.03
25x45 22000 3.4 15000 3.15 10000 2.92     3900 2.54 2700 2.43 1800 2.28
25x50 27000 3.81 18000 3.54 12000 3.26 6800 3.37 4700 2.88 3300 2.76 2200 2.57
30x25 12000 2.38 8200 2.25 5600 2.12 3900 2.22 2700 1.93 1800 1.81 1200 1.71
30x30 18000 3.00 10000 2.70 8200 2.56 4700 2.58 3300 2.24 2200 2.10 1500 2.00
30x35 22000 3.39 15000 3.13 10000 2.92 5600 2.95 3900 2.55 2700 2.43 1800 2.27
30x40 27000 3.83 18000 3.54 12000 3.28 6800 3.39 4700 2.9 3300 2.78 2200 2.59
30x45 33000 4.3 22000 4.24 15000 3.74 8200 3.71 5600 3.28 3900 3.12 2700 2.94
30x50 39000 4.74 - - - - 10000 4.09 6800 3.73 4700 3.56 3300 3.32
35x25 18000 3.10 12000 2.80 8200 2.78 4700 2.67 3300 2.41 2200 2.17 1500 2.07
35x30 27000 3.75 15000 3.22 12000 3.20 6800 3.31 4700 2.83 3300 2.71 2200 2.52
35x35 33000 4.24 22000 3.96 15000 3.69 8200 3.66 5600 3.24 3900 3.07 2700 2.90
35x40 39000 4.72 - - 18000 4.16 10000 4.07 6800 3.71 4700 3.50 3300 3.31
35x45 47000 5.27 27000 4.75 - - 12000 4.50 8200 4.16 5600 3.87 3900 3.69
35x50 - - 33000 5.39 22000 4.92 - - 10000 4.69 6800 4.19 4700 4.14

     Ripple current: 105oC, 100Hz or 120Hz

     The specific capacitance and case size are available on request.

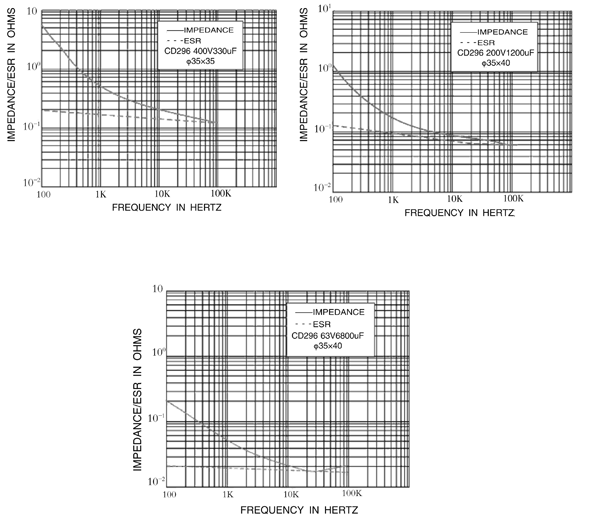

  • TYPICAL CURV-ES
