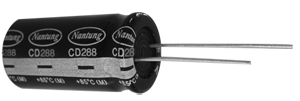

CD288 SERIES

  ALUMINUM ELECTROLYTIC CAPACITORS

  • Load life of 1000 hours at 85oC

  • High frequency and low impedance.

  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(oC) -40~+85 -25~+85
Rated Voltage Range (V) 10~100 160~250
Nominal capacitance range (uF) 4.7~3300
Capacitance Tolerance(20oC,120Hz) +/-20%
Leakage current (uA) I<=0.01CV  (at 20oC ,after 2minutes)
C: Nominal Capacitance (uF) V: Rated Voltage (V)  		I<=0.03CV  (at 20oC ,after 2minutes)
C: Nominal Capacitance (uF) V: Rated Voltage (V)
Dissipation Factor(20oC,120Hz)
Rated Voltage (V) 10 16 25 35 50 63 100 160~250
D.F. 0.20 0.16 0.14 0.12 0.10 0.09 0.08 0.15

when nominal capacitance is over 1000uF D.F. shall be added 0.02 to the listed
value with increase of every 1000 uF
Temperature Stability(120Hz)
Rated Voltage (V) 10~16 25~100 160 250
Impedance Ratio Z-40oC/Z+20oC  5 4  -   -
Z-25oC/Z+20oC - - 4 7
Load Life(+85oC)
Time 1000 hours.
Leakage Current Not more than the specified value.
Capacitance Change Within +/-20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.
Shelf Life(+85oC)
Time 500 hours.
Leakage Current Not more than the specified value.
Capacitance Change Within +/-20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.

  After test: Rated voltage to be applied for 30 minutes, 24 to 48 hours before measurement.


  • DIMENSIONS                                 MM


Lead spacing and diameter

D+/-1.0
12.5 16 18
F+/-0.5 5.0 7.5 7.5
d+/-0.1 0.6 0.8
a 0~+2.0

  • STANDARD RATINGS
WV
 10 16 25 35 50 63
Size Impedance Size Impedance Size Impedance Size Impedance Size Impedance Size Impedance

Cap

(uF)


DxL(mm)   Z( Ohm)100KHz DxL(mm)  Z( Ohm)100KHz DxL(mm) Z( Ohm)100KHz DxL(mm) Z( Ohm)100KHz DxL(mm)  Z( Ohm)100KHz DxL(mm) Z( Ohm)100KHz
100                     12.5X20 0.540
150                 12.5X20 0.410 12.5X25 0.360
220             12.5X20 0.350 12.5X25 0.280 16X25 0.245
330         12.5X20 0.280 12.5X25 0.230 16X25 0.185 16X31.5 0.160
470     12.5X20 0.245 12.5X25 0.200 12.5X25 0.160 16X31.5 0.130 16X35.5 0.115
680 12.5X20 0.200 12.5X25 0.170 16X25 0.135 16X25 0.110 16X35.5 0.092 18X35.5 0.080
1000 12.5X25 0.140 16X25 0.125 16X25 0.090 16X35.5 0.080 18X35.5 0.060 18X40 0.055
1500 16X25 0.090 16X31.5 0.080 16X35.5 0.060 18X35.5 0.050 18X40 0.040
2200 16X31.5 0.065 16X35.5 0.050 18X35.5 0.040 18X40 0.035
3300 16X35.5 0.042 18X35.5 0.035 18X40 0.030

        WV(V)  100 160 250
Size Impedance Size Impedance Size Impedance

Cap(uF)

DxL(mm)  Z( Ohm)100KHz DxL(mm)  Z( Ohm)100KHz DxL(mm)  Z( Ohm)100KHz
4.7         12.5X20 24.470
6.8         12.5X20 16.910
10         12.5X20 11.540
15     12.5X20 5.130 12.5X25 7.690
22     12.5X25 3.500 16X25 5.220
33     16X25 2.330 16X3.15 3.480
47 12.5X20 1.630 16X31.5 1.640 16X35.5 2.440
68 12.5X25 1.130 16X35.5 1.130 18X35.5 1.690
100 16X25 0.770 18X35.5 0.770
150 16X31.5 0.510 18X40 0.510
220 16X35.5 0.350
330 18X35.5 0.230
470 18X40 0.160

      The specific capacitance and case size are available on request.
