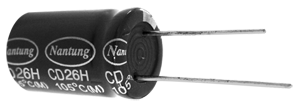

CD26H SERIES

ALUMINUM ELECTROLYTIC CAPACITORS





  • Load life of 5000 hours at 105oC

  • Wide temperature,  Long life.


  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(oC) -40~+105 -25~+105
Rated Voltage Range (V) 6.3~100 160~450
Nominal capacitance range (uF) 0.1~10000
Capacitance Tolerance(20oC,120Hz)

+/-20%

Leakage current (uA) I<=0.01CV or 3 whichever is greater. (at 20oC,after 2 minutes) I<=0.02CV+15(at 20oC,after 2 minute)

C: Nominal Capacitance (uF) V: Rated Voltage (V)

Dissipation Factor(20oC,120Hz)
Rated voltage (v) 6.3 10 16 25 35 50 63 100 160~400 450
D.F. 0.25 0.20 0.17 0.15 0.12 0.10 0.10 0.08 0.20 0.25
                         when nominal capacitance is over 1000uF D.F. shall be added 0.02 to the listed value with increase of every 1000 uF
Load Life(105oC)
Time 5000 hours
Leakage current Not more than the specified value.
Capacitance Change within +/-20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.
Shelf Life(105oC)
Time 500 hours
Leakage current Not more than the specified value.
Capacitance Change within +/-20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.

After test: Rated voltage to be applied for 30 minutes,24 to 48 hours before measurement.



  • DIMENSIONS                                  mm
  • MULTIPLIER FOR RIPPLE CURRENT

D +/-0.5 +/-1.0
5 6.3 8 10 12.5 16 18 22
F+/-0.5 2.0 2.5 3.5 5.0 7.5 10
d+/-0.1 0.5 0.6 0.8 0.8
a 1.0 L<16:1.0
L>=16:2.0



Temperature coefficient

            Temperature(oC)
 		 +70 +85 +105
Rated Voltage (V)
6.3~100 2.0 1.7 1.0
160~450 1.8 1.4 1.0
  • STANDARD RATINGS

WV 6.3 10 16 25 35 50
Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple

Cap(uF)


DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA)
0.1                     5X11 3
0.22                     5X11 4
0.33                     5X11 5
0.47                     5X11 6
1                     5X11 9
2.2                     5X11 11
3.3                     5X11 15
4.7                     5X11 18
10         5X11 20 5X11 25 5X11 25 5X11 25
22         5X11 30 5X11 35 5X11 35 6.3X11 40
33         5X11 40 5X11 40 6.3X11 50 6.3X11 60
47     5X11 45 5X11 50 6.3X11 50 6.3X11 65 8X11.5 70
100 5X11 60 6.3X11 80 6.3X11 80 6.3X11 90 8X11.5 110 8X20 120
220 6.3X11 100 8X11.5 110 8X11.5 140 8X16 150 8X20 190 10X25 240
330 8X11.5 120 8X11.5 160 8X16 180 8X20 220 10X20 260 12.5X20 320
470 8X16 170 8X16 190 8X20 250 10X20 290 12.5X20 350 12.5X25 430
1000 10X20 300 10X20 360 12.5X20 440 12.5X25 540 16X31.5 620 16X31.5 790
2200 12.5X20 580 12.5X25 620 16X31.5 400 16X35.5 880 16X35.5 1030 18X40 1230
3300 12.5X25 670 16X31.5 800 16X35.5 970 16X35.5 1120 18X40 1320 18X40 1440
4700 16X31.5 1000 16X31.5 1050 16X35.5 1240 18X40 1440 18X40 1540 22X40 1780
6800 16X31.5 1120 16X35.5 1300 18X35.5 1530 18X40 1630 22X40 1880
10000 16X40 1320 18X40 1620 18X40 1730 22X40 2000



 WV 63 100 160 200 250 350
Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple

Cap(uF)


DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA)
0.1     5X11 3
0.22     5X11 4
0.33     5X11 5
0.47     5X11 6 5X11 8 6.3X11 6 6.3X11 6
1     5X11 9 5X11 12 6.3X11 9 6.3X11 9 8X11.5 12
2.2     5X11 15 6.3X11 15 6.3X11 15 8X11.5 15 10X12.5 18
3.3     5X11 18 8X11.5 20 8X11.5 20 10X12.5 20 10X16 23
4.7 5X11 20 5X11 20 8X11.5 25 10X12.5 30 10X12.5 30 10X16 35
10 5X11 30 6.3X11 35 10X12.5 40 10X16 45 10X20 45 12.5X20 50
22 6.3X11 50 8X11.5 65 10X20 70 10X20 70 12.5X25 80 12.5X25 80
33 8X11.5 60 10X12.5 95 12.5X20 110 12.5X25 110 12.5X25 110 16X31.5 140
47 8X11.5 90 10X16 120 12.5X25 140 12.5X25 140 16X25 140 18X35.5 360
100 10X20 150 12.5X20 220 16X25 240 16X31.5 250 18X35.5 260
220 12.5X20 270 16X25 420 18X35.5 430
330 12.5X25 380 16X25 510
470 12.5X35.5 500 16X31.5 680
1000 16X40 900 18X40 1230
2200 18X40 1310
3300 22X40 1730



 WV 400 450
Size

Ripple

 Size Ripple

Cap(uF)


DxL(mm) (mA) DxL(mm) (mA)
1 10X16 15 10X20 18
2.2 10X16 20 10X20 29
3.3 10X16             10X20 25 10X20 41
4.7 12.5X20            16X25 40 12.5X20 49
10 10X20   12.5X20 70 12.5X25 75
22 16X31.5 110 16X35.5 115
33 18X35.5 180 18X40 145

       Ripple Current: 105 oC ,100Hz or 120Hz

       The specific capacitance and case size are available on request.
