| CD261
SERIES
ALUMINUM
ELECTROLYTIC CAPACITORS
|
|
| |
-
Long
useful life of 8000 hours, 10000 hours at 105℃
-
Polarized capacitors; Non-solid ; Pressure relief
-
High rated voltage, up to 450V
-
High ripple
current, High-reliability
-
For Electronic Ballast, Lighting, Monitors, General
industrial use
-
Filtering of high voltages in power supplies
|
| Item |
Characteristics |
| Operating
Temperature Range(oC) |
-25~+105 |
|
Rated Voltage Range (V) |
160~450 |
| Nominal
capacitance range (uF) |
6.8~220 |
| Capacitance
Tolerance(20oC, 100Hz) |
+/-20% |
|
Leakage Current (uA) |
I≤0.04CV+100μA
(after 1 minute)
C: Nominal Capacitance (μF), V: Rated Voltage (V) |
|
Dissipation Factor(20oC, 100Hz) |
| Rated
voltage (v) |
160 |
200 |
250 |
350 |
400 |
450 |
| D.F. |
0.15 |
0.15 |
0.15 |
0.20 |
0.20 |
0.20 |
|
|
Temperature Stability(120Hz) |
| Rated
voltage (v) |
160 |
200 |
250 |
350 |
400 |
450 |
|
Z-40℃/Z+20℃ |
3 |
3 |
4 |
6 |
6 |
6 |
|
| Load
Life(+105oC) |
| Leakage
current |
Not more than the specified value |
| Capacitance
change |
withiną30% of initial value |
| Dissipation
Factor |
Not more than 300% of the specified value. |
After life test with DC voltage and +105℃
ripple current applied for regulation times, the
capacitors shall meet
the requirements specified above. Regulation time of
life test: Φ10=8000 hours; Φ12.5~Φ18=10000 hours
|
| Shelf
Life (+105oC) |
| Time |
1000hours ( No voltage applied) |
| Leakage
current |
Not more than the specified value |
| Capacitance
change |
withiną20% of initial value |
| Dissipation
Factor |
Not more than 200% of the specified value. |
After test: Rated voltage to be applied for 30minutes, 24 to
48 hours before measurement. |
|
|

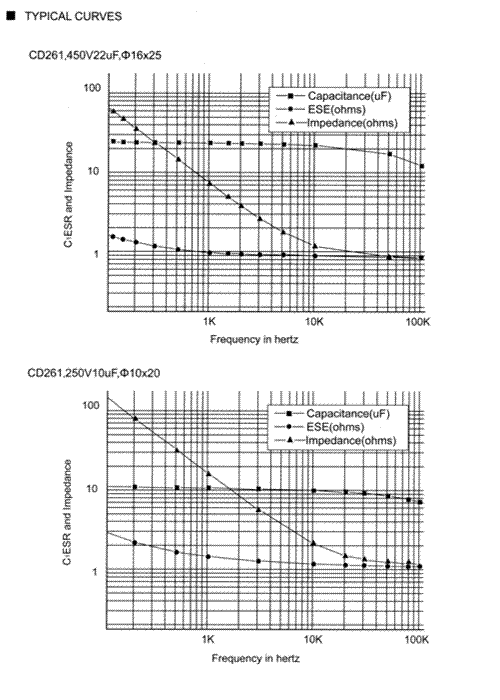

- MULTIPLIER
FOR RIPPLE CURRENT
|
Lead spacing and diameter
| D+/-0.5 |
10 |
12.5 |
16 |
18 |
| F+/-0.5 |
5.0 |
5.0 |
7.5 |
7.5 |
|
d+/-0.1 |
0.6 |
0.6 |
0.8 |
0.8 |
|
a |
1.5 (L≤16);
2.0 (L>16) |
|
Frequency Coefficient
|
Freq(Hz) |
50 |
120 |
1K |
10K |
100K |
|
Factor |
0.3 |
0.5 |
0.8 |
0.9 |
1.00 |
Temperature Coefficient
|
Temp.(
℃) |
≤+65 |
+85 |
+105 |
|
Factor |
2.1 |
1.7 |
1.0 |
|
|
WV |
160 |
200 |
250 |
|
Cap
(uF)
|
Size |
Ripple |
Size |
Ripple |
Size |
Ripple |
| DxL(mm) |
(mA) |
DxL(mm) |
(mA) |
DxL(mm) |
(mA) |
|
10 |
10x16 |
250 |
10x16 |
250 |
10x20 |
230 |
|
22 |
10x20 |
500 |
10x20 |
500 |
12.5x20 |
600 |
|
33 |
10x20 |
500 |
12.5x20 |
600 |
12.5x20 |
600 |
|
47 |
12.5x20 |
660 |
12.5x20 |
660 |
12.5x25 |
720 |
|
16x20 |
|
68 |
12.5x25 |
760 |
12.5x25 |
760 |
16x25 |
920 |
|
18x20 |
|
16x20 |
16x20 |
|
100 |
16x25 |
1120 |
16X25 |
1120 |
16X31.5 |
1200 |
|
18x20 |
18X20 |
18X25 |
|
150 |
16X31.5 |
1360 |
16X31.5 |
1360 |
18X31.5 |
1500 |
|
18X25 |
18X25 |
|
220 |
16X31.5 |
1400 |
18X31.5 |
1700 |
- |
- |
|
18X25 |
|
WV |
350 |
400 |
450 |
|
Cap
(uF)
|
Size |
Ripple |
Size |
Ripple |
Size |
Ripple |
| DxL(mm) |
(mA) |
DxL(mm) |
(mA) |
DxL(mm) |
(mA) |
|
6.8 |
10x16 |
220 |
10x16 |
220 |
10x20 |
150 |
|
10 |
10x20 |
280 |
10x20 |
280 |
12.5x20 |
320 |
|
22 |
12.5x20 |
350 |
12.5x20 |
430 |
16x25 |
560 |
|
16x20 |
18x20 |
|
33 |
16x20 |
500 |
16x25 |
640 |
16x31.5 |
700 |
|
18x20 |
18x25 |
|
47 |
16x25 |
660 |
16x31.5 |
840 |
18X31.5 |
880 |
|
18x20 |
18x25 |
|
68 |
16x31.5 |
850 |
16x31.5 |
1000 |
18X35 |
1130 |
|
18x25 |
18X31.5 |
Ripple
Current(mA rms) at 105℃,100KHz;
Rated capacitance at 20℃,
120Hz.
The specific
capacitance and case size are available on request.
|
