CD17S SERIES

 ALUMINUM ELECTROLYTIC CAPACITORS



  • High stability

  • Small capacitance change

  • Low dissipation factor, Low leakage current

  • Used for photo flash

  • SPECIFICATIONS

Item Characteristics
Operating Temperature Range(oC) -20~+55
Rated Voltage 330WV.DC 360WV.DC
voltage Proof 350SV.DC 390SV.DC
Nominal capacitance range (uF) 40~300
Capacitance Tolerance(20oC,120Hz) -10%~+20%
Dissipation Factor(20,120Hz)

0.06MAX

Leakage current

I=1xC(at 20oC,after 5minutes)Max
I=Leakage Current (uA) C: Nominal Capacitance (uF)

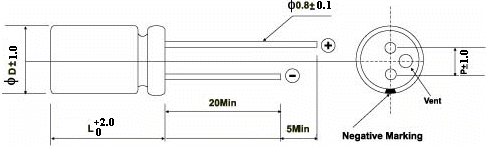

  • DIMENSIONS                                                                                       mm
  • STANDARD RATINGS

        330WV.DC(350SV.DC)

Capacitance
(mm)
12
14
16
18
(uF)
P
5.0
7.5
7.5
7.5
40

L(mm)

  25
-
-
-
60
  32
-
-
-
80
-
32
25
-
100
-
-
30
-
120
-
 -
 36
-
140
-
35
40
-
150
-
39
 35
-
160
-
38
 35
36
180
-
45
38
36
200
-
-
38
 40
220
-
52
-
-
250
-
-
-
40

       360WV.DC(390SV.DC)

Capacitance

D(mm)

16.0

18.0

(uF)

P

6.0

6.0

150

L(mm)

38

30

180

42

34

200

48

40

250

56

48

300

-

50



     The specific capacitance and case size are available on request.
