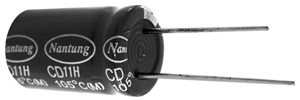

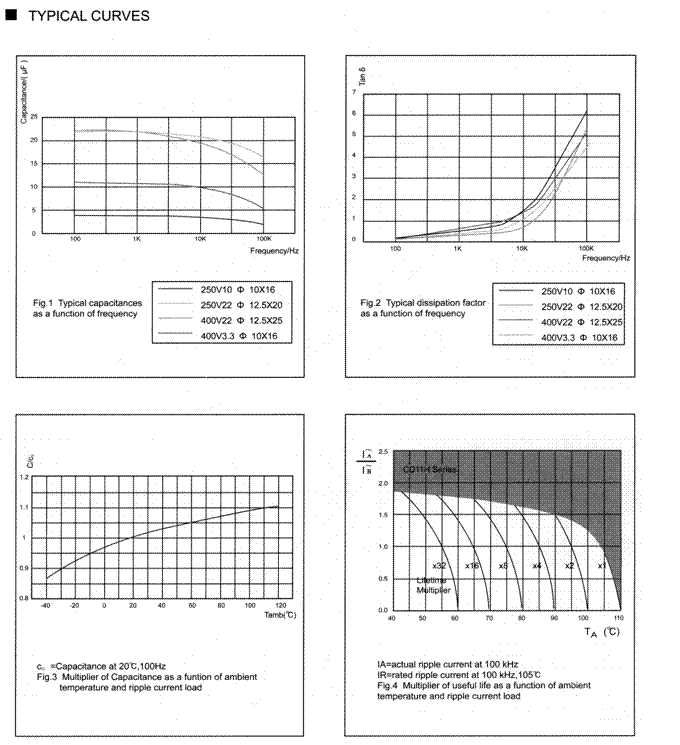

CD11H SERIES

 ALUMINUM ELECTROLYTIC CAPACITORS



  • Load life of 2000 hours at 105℃

  • High ripple current and highly dependable product

  • Downsized and suited for electronic ballast
  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(oC) -40~+105
Rated Voltage Range (V) 160~450
Nominal capacitance range (uF) 1~330
Capacitance Tolerance(20oC, 120Hz) +/-20%
Leakage Current (uA)(20oC)

              CV≤1000, I≤0.1CV+40μA (1 minute) ; CV>1000, I≤0.04CV+100μA (1 minute)                      C: Nominal Capacitance (μF),    V: Rated Voltage (V)
Dissipation Factor(20oC, 120Hz)
Rated voltage (v) 160 200 250 350 400 450
D.F. 0.20 0.20 0.20 0.24 0.24 0.24
Load Life(+105oC)
Time D≤Φ8:1000hours; D≥Φ10:2000hours
Leakage current Not more than the specified value
Capacitance change withiną20% of initial value
Dissipation Factor Not more than 200% of the specified value.
Shelf Life (+105oC)

After leaving capacitors under no load for 1000hours, they meet the specified value for load life characteristics listed above.

After test: Rated voltage to be applied for 30minutes, 24 to 48 hours before measurement.



  • DIMENSIONS                                 mm
  • MULTIPLIER FOR RIPPLE CURRENT



Lead spacing and diameter

D+/-0.5 6.3 8 10 12.5 16 18
F+/-0.5 2.5 3.5  5.0 5.0  7.5  7.5
d+/-0.1 0.5 0.6   0.6   0.6  0.8  0.8
a 1.0 1.0 (L<16); 2.0(L≥16)

Frequency Coefficient

    Freq(Hz)

50

120

500

1K

10K-
Cap(uF)
1~47 0.80 1.00 1.20 1.30 1.50

100~330

0.80

1.00

1.10

1.15

1.20

Temperature Coefficient

Temp.( ℃)

+70

+85

+105

Factor

1.8

1.4

1.0


  • STANDARD RATINGS



WV 160               200 250
Size Ripple  Size Ripple  Size Ripple
Cap

(uF)


DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA)

1

-

-

-

-

6.3x11.5

13

2.2

-

-

-

-

6.3x11.5

23

3.3

-

-

6.3x11.5

26

6.3x11.5

35

8x11.5

42

4.7

6.3x11.5

35

6.3x11.5

40

8x11.5

50

8x11.5

50

10

8x11.5

60

10x12.5

70

10x12.5

75

10x16

10x16

88

88

22

10x16

110

10x20

125

10x20

130

10x20

195

12.5x20

155

33

10x20

145

10x20

165

12.5x20

170

12.5x20

190

47

12.5x20

220

12.5x20

200

12.5x25

220

100

12.5x25

290

16X25

335

16X31.5

360

220

16X31.5

540

16X35.5

580

-

-

16x35.5

580

18X35.5

620

330

18X35.5

700

-

-

-

-



WV 350               400 450
Size Ripple  Size Ripple  Size Ripple
Cap

(uF)


DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA)

1

6.3x11.5

16

6.3x11.5

15

6.3x11.5

15

8x11.5

18

2.2

6.3x11.5

25

8x11.5

29

10x12.5

25

8x11.5

31

10x12.5

34

3.3

8x11.5

40

10x12.5

40

10x12.5

33

10x12.5

45

10x16

45

10x16

41

4.7

10x12.5

50

10x16

52

10x16

42

10x20

57

10x20

49

10

10x20

80

10x20

85

12.5x20

67

12.5x20

96

22

12.5x20

135

12.5x25

140

16x25

115

12.5x25

150

33

16X25

195

16X25

200

16X31.5

155

47

16X25

230

16X31.5

250

16X35.5

185

18X31.5

250

100

18X35.5

357

-

-

-

-

18X40

400



     Ripple Current (mA rms) at 105℃,120Hz;

The specific capacitance and case size are available on request.
